Product description

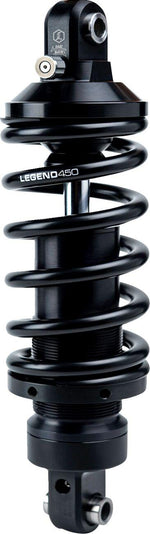

The Legend Suspension REVO-A Adjustable M-Eight Softail Coil Suspension Shock For Harley Davidson FLDE 1750 2018-2020 Rear 343.00mm (13.50") is part of the latest collection from Legend Suspension.

Features:

• All new Revo-A coil design for the M-Eight Softail
• Available in 12.5", 13", and 13.5", standard or heavy-duty applications
• Revo-A coil spring provides superior ride comfort, improved performance, and increased resistance to bottoming for all day comfort
• Provides optimum rebound performance that can be fine-tuned for any given rider weight, personal ride preference, or personal riding style
• Adjustable preload for rider set up, also allows for minimal pre-load adjustment when changing between rider's weights and loads
• Seven external knob adjustments allow fine-tuning of rebound utilizing needle valve technology to adapt to your riding style
• Low friction sleeve bearings both top and bottom for ease of installation, this also allows the shock to float in its mount and avoid shock bind
• Hard anodized, machined billet aluminum 46 mm mono tube utilizes a lightweight high flow piston design for improved fluid flow resulting in unmatched handling and bike control
• Hard chromed shaft is 14% larger for increased strength
• High quality chrome-silicon spring for consistent spring rate for the life of the motorcycle
• Internal floating nitrogen piston ensures consistent damping performance
• Deflective disc valving self-adjusts to frequency and ensures controlled performance
• Legend's durable and low friction sealing system and sliding bearings provide improved performance and feel
• Available in Black Type III hard coat anodize
• Easy installation and adjustment replacing the stock shock and mounts with original OEM hardware
• Sold as Mono Shock (1 shock only)
• Preload wrench included
• Designed for optimum performance with the Legend Axeo front suspension
• Lifetime Warranty
• Made by hand in Sturgis, SD, USA
• P65 WARNING: Cancer and Reproductive Harm.
13" is standard length for FLHC/FXFB/FXLRS/FXLRST. Heavy Duty applications are recommended for 350 lb + rider and passenger total weight. Also consider heavy-duty if the majority of your riding is 2 up with a passenger and/or gear.

Specifications:

• Adjustment Type: Adjustable Rebound Damping
• Color/Finish: Anodized| Black
• Duty: Standard
• Extended Length: 343.00 mm (13.50")
• Material: Billet Aluminum
• Model: Revo-A
• Mounting Position: Rear
• Product Name: Shock Absorber
• Reservoir Location: Internal
• Type: Coilover Monotube
• Units: Each

To fit:

• Harley Davidson FLDE 1750 ABS 2019 Softail Deluxe 107 All Models
• Harley Davidson FLDE 1750 ABS 2020 Softail Deluxe 107 All Models
• Harley Davidson FLFBS 1868 ABS 2018 Softail Fat Boy 114 All Models
• Harley Davidson FLFBS 1868 ABS 2018 Softail Fat Boy Anniversary (ANV) 114 All Models
• Harley Davidson FLFBS 1868 ABS 2018 Softail Fat Boy Anniversary (ANX) 114 All Models
• Harley Davidson FLFBS 1868 ABS 2019 Softail Fat Boy 114 All Models
• Harley Davidson FLFBS 1868 ABS 2020 Softail Fat Boy 114 All Models
• Harley Davidson FLFBS 1868 ABS 2021 Softail Fat Boy 114 All Models
• Harley Davidson FLFBS 1868 ABS 2022 Softail Fat Boy 114 All Models
• Harley Davidson FLFBS 1868 ABS 2023 Softail Fat Boy 114 All Models
• Harley Davidson FLFBS 1868 ABS 2024 Softail Fat Boy 114 All Models
• Harley Davidson FLFB 1750 ABS 2018 Softail Fat Boy 107 All Models
• Harley Davidson FLFB 1750 ABS 2019 Softail Fat Boy 107 All Models
• Harley Davidson FLFB 1750 ABS 2020 Softail Fat Boy 107 All Models
• Harley Davidson FLHCS 1868 ABS 2018 Softail Heritage Classic 114 All Models
• Harley Davidson FLHCS 1868 ABS 2018 Softail Heritage Classic Anniversary 114 All Models
• Harley Davidson FLHCS 1868 ABS 2019 Softail Heritage Classic 114 All Models
• Harley Davidson FLHCS 1868 ABS 2020 Softail Heritage Classic 114 All Models
• Harley Davidson FLHCS 1868 ABS 2021 Softail Heritage Classic 114 All Models
• Harley Davidson FLHCS 1868 ABS 2022 Softail Heritage Classic 114 All Models
• Harley Davidson FLHCS 1868 ABS 2023 Softail Heritage Classic 114 All Models
• Harley Davidson FLHCS 1868 ABS 2024 Softail Heritage Classic 114 All Models
• Harley Davidson FLHC 1750 ABS 2018 Softail Heritage Classic 107 All Models
• Harley Davidson FLHC 1750 ABS 2019 Softail Heritage Classic 107 All Models
• Harley Davidson FLHC 1750 ABS 2020 Softail Heritage Classic 107 All Models
• Harley Davidson FLHC 1750 ABS 2021 Softail Heritage Classic 107 All Models
• Harley Davidson FLHC 1750 ABS 2022 Softail Heritage Classic 107 All Models
• Harley Davidson FLSB 1750 ABS 2018 Softail Sport Glide 107 All Models
• Harley Davidson FLSB 1750 ABS 2019 Softail Sport Glide 107 All Models
• Harley Davidson FLSB 1750 ABS 2020 Softail Sport Glide 107 All Models
• Harley Davidson FLSB 1750 ABS 2021 Softail Sport Glide 107 All Models
• Harley Davidson FLSB 1750 ABS 2022 Softail Sport Glide 107 All Models
• Harley Davidson FLSB 1750 ABS 2023 Softail Sport Glide 107 All Models
• Harley Davidson FLSB 1750 ABS 2024 Softail Sport Glide 107 All Models
• Harley Davidson FLSL 1750 ABS 2018 Softail Slim 107 All Models
• Harley Davidson FLSL 1750 ABS 2019 Softail Slim 107 All Models
• Harley Davidson FLSL 1750 ABS 2020 Softail Slim 107 All Models
• Harley Davidson FLSL 1750 ABS 2021 Softail Slim 107 All Models
• Harley Davidson FXBBS 1868 ABS 2021 Softail Street Bob 114 All Models
• Harley Davidson FXBBS 1868 ABS 2022 Softail Street Bob 114 All Models
• Harley Davidson FXBBS 1868 ABS 2023 Softail Street Bob 114 All Models
• Harley Davidson FXBBS 1868 ABS 2024 Softail Street Bob 114 All Models
• Harley Davidson FXBBS 1868 2021 Softail Street Bob 114 American Models
• Harley Davidson FXBB 1750 ABS 2018 Softail Street Bob 107 All Models
• Harley Davidson FXBB 1750 ABS 2019 Softail Street Bob 107 All Models
• Harley Davidson FXBB 1750 ABS 2020 Softail Street Bob 107 All Models
• Harley Davidson FXBRS 1868 ABS 2018 Softail Breakout 114 All Models
• Harley Davidson FXBRS 1868 ABS 2018 Softail Breakout Anniversary (ANX) 114 All Models
• Harley Davidson FXBRS 1868 ABS 2019 Softail Breakout 114 All Models
• Harley Davidson FXBRS 1868 ABS 2020 Softail Breakout 114 All Models
• Harley Davidson FXBRS 1868 ABS 2021 Softail Breakout 114 European Models
• Harley Davidson FXBRS 1868 ABS 2022 Softail Breakout 114 European Models
• Harley Davidson FXBR 1750 ABS 2018 Softail Breakout 107 All Models
• Harley Davidson FXBR 1750 ABS 2019 Softail Breakout 107 All Models
• Harley Davidson FXBR 1750 ABS 2020 Softail Breakout 107 All Models
• Harley Davidson FXBR 1923 ABS 2023 Softail Breakout 117 All Models
• Harley Davidson FXBR 1923 ABS 2024 Softail Breakout 117 All Models
• Harley Davidson FXFBS 1868 ABS 2018 Softail Fat Bob 114 All Models
• Harley Davidson FXFBS 1868 ABS 2019 Softail Fat Bob 114 All Models
• Harley Davidson FXFBS 1868 ABS 2020 Softail Fat Bob 114 All Models
• Harley Davidson FXFBS 1868 ABS 2021 Softail Fat Bob 114 All Models
• Harley Davidson FXFBS 1868 ABS 2022 Softail Fat Bob 114 All Models
• Harley Davidson FXFBS 1868 ABS 2023 Softail Fat Bob 114 All Models
• Harley Davidson FXFB 1750 ABS 2018 Softail Fat Bob 107 All Models
• Harley Davidson FXFB 1750 ABS 2019 Softail Fat Bob 107 All Models
• Harley Davidson FXFB 1750 ABS 2021 Softail Fat Bob 107 American Models
• Harley Davidson FXLRST 1923 ABS 2022 Softail Low Rider ST 117 All Models
• Harley Davidson FXLRST 1923 ABS 2022 Softail Low Rider ST EL Diablo 117 All Models
• Harley Davidson FXLRST 1923 ABS 2023 Softail Low Rider ST 117 All Models
• Harley Davidson FXLRST 1923 ABS 2024 Softail Low Rider ST 117 All Models
• Harley Davidson FXLRS 1868 ABS 2020 Softail Low Rider S 114 All Models
• Harley Davidson FXLRS 1868 ABS 2021 Softail Low Rider S 114 All Models
• Harley Davidson FXLRS 1923 ABS 2022 Softail Low Rider S 117 All Models
• Harley Davidson FXLRS 1923 ABS 2023 Softail Low Rider S 117 All Models
• Harley Davidson FXLRS 1923 ABS 2024 Softail Low Rider S 117 All Models
• Harley Davidson FXLR 1750 ABS 2018 Softail Low Rider 107 All Models
• Harley Davidson FXLR 1750 ABS 2019 Softail Low Rider 107 All Models
• Harley Davidson FXLR 1750 ABS 2020 Softail Low Rider 107 All Models
• Harley Davidson FXST 1750 ABS 2020 Softail Standard All Models
• Harley Davidson FXST 1750 ABS 2021 Softail Standard All Models
• Harley Davidson FXST 1750 ABS 2022 Softail Standard All Models
• Harley Davidson FXST 1750 ABS 2023 Softail Standard All Models
• Harley Davidson FXST 1750 ABS 2024 Softail Standard All Models
• Harley Davidson FXST 1750 2021 Softail Standard American Models
• Harley Davidson FLDE 1750 ABS 2018 Softail Deluxe 107 All Models

Manufacturer part number: 1310-2315

View all Legend Suspension. View all Parts and spares.

Contents

Your package will include the following:

• 1 X Legend Suspension REVO-A Adjustable M-Eight Softail Coil Suspension Shock For Harley Davidson FLDE 1750 2018-2020 Rear 343.00mm (13.50")
