Product description

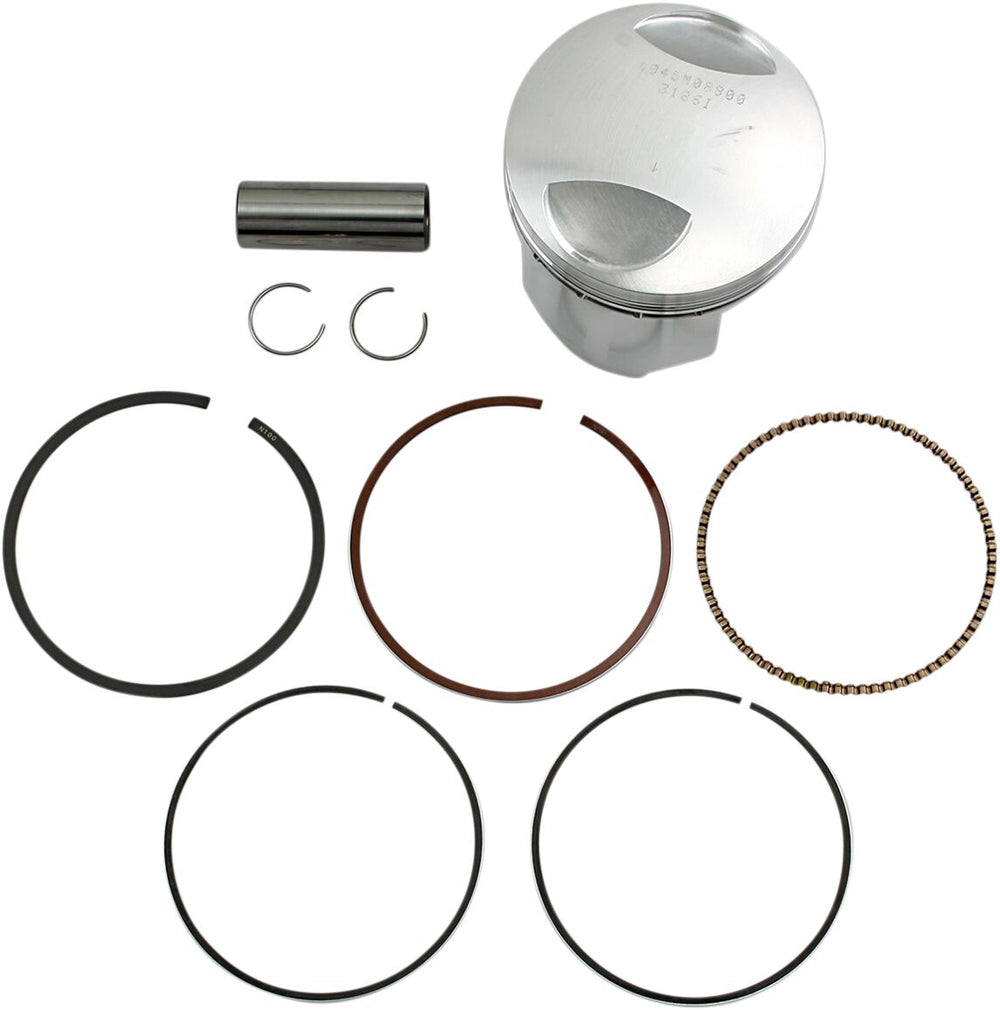

The Wiseco Piston Kit - +1mm - Yamaha XT500 1976-90 is part of the latest performance part range from Wiseco.

High-Performance Piston from Wiseco.

Features:

• Forged from high-silicon alloy for maximum strength and dependability
• Wiseco offers a complete range of popular piston models and years for both trail and racing applications
• All Wiseco pistons are priced with rings and circlips

Spec:

• BORE SIZE: 88,00 mm
• DISPLACEMENT: 499 cc
• COMPRESSION RATIO: 10.0:1
• PRODUCT NAME: Piston
• ENGINE TYPE: 4-Stroke
• STROKE LENGTH: 84,00 mm
• PISTON MATERIAL: Aluminium Alloy| Forged
• COMPRESSION RATIO IMPERIAL: 10.0:1
• BORE - OVERSIZE METRIC: +1.00 mm
• BORE - OVERSIZE: +1,00 mm

To fit:

• YAMAHA XT 500 1976
• YAMAHA XT 500 1977
• YAMAHA XT 500 1978
• YAMAHA XT 500 1979
• YAMAHA XT 500 1980
• YAMAHA XT 500 1981
• YAMAHA XT 500 1982
• YAMAHA XT 500 1983
• YAMAHA XT 500 N 1984
• YAMAHA XT 500 1984
• YAMAHA XT 500 N 1985
• YAMAHA XT 500 1985
• YAMAHA XT 500 N 1986
• YAMAHA XT 500 1986
• YAMAHA XT 500 1987
• YAMAHA XT 500 1988
• YAMAHA XT 500 1989
• YAMAHA XT 500 E 1990
• YAMAHA XT 500 E 1991
• YAMAHA XT 500 E 1992
• YAMAHA XT 500 E 1993
• YAMAHA XT 500 E 1994
• YAMAHA XT 500 E 1995
• YAMAHA XT 500 E 1996
• YAMAHA XT 500 E 1997
• YAMAHA XT 500 E 1998
• YAMAHA XT 500 E 1999
• YAMAHA XT 500 E 2000
• YAMAHA XT 500 E 2001
• YAMAHA XT 500 E 2002
• YAMAHA XT 500 S Edition 1988
• YAMAHA XT 500 S Edition 1989
• YAMAHA XT 500 Z 1990

Manufacturer part number: W4045M08800

View all Wiseco parts. View all Engine parts.

Contents

Your package will include the following:

• 1 X Wiseco Piston Kit - +1mm - Yamaha XT500 1976-90
